2. Nuts n Bolts: Inventory Organization
BillyBob is a daily driver. It's not long after I install a shiny new part that it begins to suffer from dirt and corrosion. I combat this condition by constantly detailing BillyBob's subassemblies. There is a ordered list I follow (and continue to add to). When the list is completed, I start at the beginning again.
This work would go faster (leaving BillyBob immobile for a shorter period of time) if I didn't have to stop to re-finish fasteners. I decided to start phasing in more durable fasteners (stainless steel) as well as keep two sets of fasteners and small parts so that while one set is on the truck, the other set can be in rotation for cleaning and re-finishing operations on those rainy days when I can't work outside much.
I decided to organize the fasteners and small parts into groups that match the detailing operations. I have a collection of wooden cigar boxes that I continue to add to. Yes, I'm a cigar smoker. I's my one remaining vice 'an I'm not giving it up, even tho' I'm aware that when the gays came out of the closets, the smokers were pushed into them.
Engine Bay Group
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Coil Bracket | 106324 Bolt | Sect 12 | Sht 6.00 | 2 | 5/16"-18 x 3/4" hex cap screws | Armor-coat | Cylinder Head |
| Coil Bracket | 115548 LW | Sect 12 | Sht 6.00 | 2 | 5/16" lock washers | Stainless | Cylinder Head |
| Coil Bracket | Sect 12 | Sht 6.00 | 1 | #10-32 x 1-9/16" phillips head screw | Stainless | Coil Bracket | |
| Fender Brace | 120228 Bolt | Sect 11 | Sht 12.00 | 4 | 5/16"-18 x 5/8" hex cap screws | CAD plated | Firewall end |
| Fender Brace | 138485 LW | Sect 11 | Sht 12.00 | 4 | 5/16" external tooth lock washers | Firewall end | |
| Fender Brace | 120377 Nut | Sect 11 | Sht 12.00 | 4 | 3/8"-16 hex nuts | Stainless | Bracket end |
| Fender Brace | 120394 PW | Sect 11 | Sht 12.00 | 4 | 3/8" flat washers | Stainless | Bracket end |
| Fender Brace | 120382 LW | Sect 11 | Sht 12.00 | 2 | 3/8" lock washers | Stainless | Bracket end |
| Upper Radiator Baffle | 122007 Bolt | Sect 11 | Sht 2.06 | 6 | 5/16"-18 x 11/16" hex cap screws | Stainless | Radiator Support |
| Upper Radiator Baffle | 446363 PW | Sect 11 | Sht 2.06 | 6 | 5/16" flat washers | Stainless | Radiator Support |
| Upper Radiator Baffle | 120214 LW | Sect 11 | Sht 2.06 | 6 | 5/16" lock washers | Stainless | Radiator Support |
| Upper Radiator Baffle | 120834 Bolt | Sect 11 | Sht 2.04 | 4 | 5/16"-18 x 11/16" hex cap screws | Stainless | Vertical Grille Bar |
| Upper Radiator Baffle | 138485 LW | Sect 11 | Sht 2.04 | 4 | 5/16" lock washers | Stainless | Vertical Grille Bar |
| Upper Radiator Baffle | 3650059 Screw | Sect 11 | Sht 2.04 | 6 | 1/4" sheet metal cap screws | Stainless | Grille Header Bar and Fender |
| Upper Radiator Baffle | 120386 PW | Sect 11 | Sht 2.04 | 6 | integral w/abv cap screws | Stainless | Grille Header Bar and Fender |
| Hood Lock Plate Assembly | 120583 Bolt | Sect 11 | Sht 3.00 | 4 | 1/4"-20 x 5/8" phillips panhead machine screws | Stainless | Upper Radiator Baffle |
| Hood Lock Plate Assembly | 120386 PW | Sect 11 | Sht 3.00 | 4 | 1/4" flat washers | Stainless | Upper Radiator Baffle |
| Hood Lock Plate Assembly | 120380 LW | Sect 11 | Sht 3.00 | 4 | 1/4" lock washers | Stainless | Upper Radiator Baffle |
| Hood Lock Assembly | 451167 Bolt & LW Assy | Sect 11 | Sht 4.00 | 4 | 1/4" - 20 x ½" clutch truss head screws | Hood Lock Assembly and Hood | |
| Hood Lock Assembly | 187657 Bolt | Sect 11 | Sht 4.00 | 6 | 1/4" - 20 x ½" phillips flat head screws | Stainless | Hood Lock Assembly and Hood |
| Hood Lock Assembly | 138604 LW | Sect 11 | Sht 4.00 | 6 | 1/4" external tooth lock washers | Stainless | Hood Lock Assembly and Hood |
| Hood Lock Assembly | 121753 LW | Sect 11 | Sht 4.00 | Hood Panel Brace Rod | |||
| Hood Lock Assembly | 134551 Nut | Sect 11 | Sht 4.00 | 4 | 1/4" - 20 hex nuts | Stainless | Hood Panel Brace Rod |
| Hood Lock Assembly | Sect 11 | Sht 4.00 | 1 | ½" - 20 half ht hex nut | Tin-zinc | Hood Lock Shaft Lock Nut | |
| Hood Lock Assembly | Sect 11 | Sht 4.00 | 1 | 17/32" ID 1-3/8" OD 3/32" flat washer | Tin-zinc | Hood Lock Shaft Lock Nut |
* These are not the "concours correct" fasteners. They are just what is currently mounted on BillyBob.
Grille and Exterior Lighting Group
This group includes the grille fasteners, parking lights and taillights.
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Tail Light | 114378 Nut | Sect 12 | Sht 13.00 | 4 | 1/4" - 20 hex nuts | Stainless | Taillight Assembly and Bracket |
| Tail Light | 103319 LW | Sect 12 | Sht 13.00 | 4 | 1/4" lock washers | Stainless | Taillight Assembly and Bracket |
| Tail Light Ground | 2 | #8 - 32 x ½" slot head machine screws | Stainless | Taillight Ground Wire and Frame | |||
| Tail Light Ground | 4 | 1/4" flat washers | Stainless | Taillight Ground Wire and Frame | |||
| Tail Light Ground | 2 | #8 - 32 hex nuts | Stainless | Taillight Ground Wire and Frame | |||
| Tail Light Bracket | 122017 Bolt | Sect 12 | Sht 13.01 | 4 | 5/16" -18 x 3/4" hex flange cap screws | Black | Taillight Bracket and Body |
| Tail Light Bracket | 4 | 3/8" flat washers | Stainless | Taillight Bracket and Body | |||
| Tail Light Bracket | 103320 LW | Sect 12 | Sht 13.01 | 4 | 5/16" lock washers | Stainless | Taillight Bracket and Body |
| Tail Light Bracket | 102634 Nut | Sect 12 | Sht 13.01 | 4 | 5/16" - 18 hex nuts | Armor-coat | Taillight Bracket and Body |
| Parking Light Lens | 4 | #8 - 32 oval undercut phillips shoulder screws, 3/4" shoulder length, 3/16" shoulder dia, 5/16" thread length | Parking Light Lens and Parking Lamp body | ||||
| Parking Light Assembly | 3701996 Screw | Sect 12 | Sht 1.04 | 4 | #10 x 7/8" oval undercut phillips sheet metal screws | Parking Light Assembly and Grille assembly | |
| Grille Assembly | 3650059 Screw | Sect 11 | Sht 2.03 | 24 | sheet-metal cap screws w/ integral washers | Stainless | Grille assembly and Fenders |
| Grille Assembly | 3664889 Anchor Nut | Sect 11 | Sht 2.03 | 24 | sheet-metal anchor clips | Black | Grille assembly and Fenders |

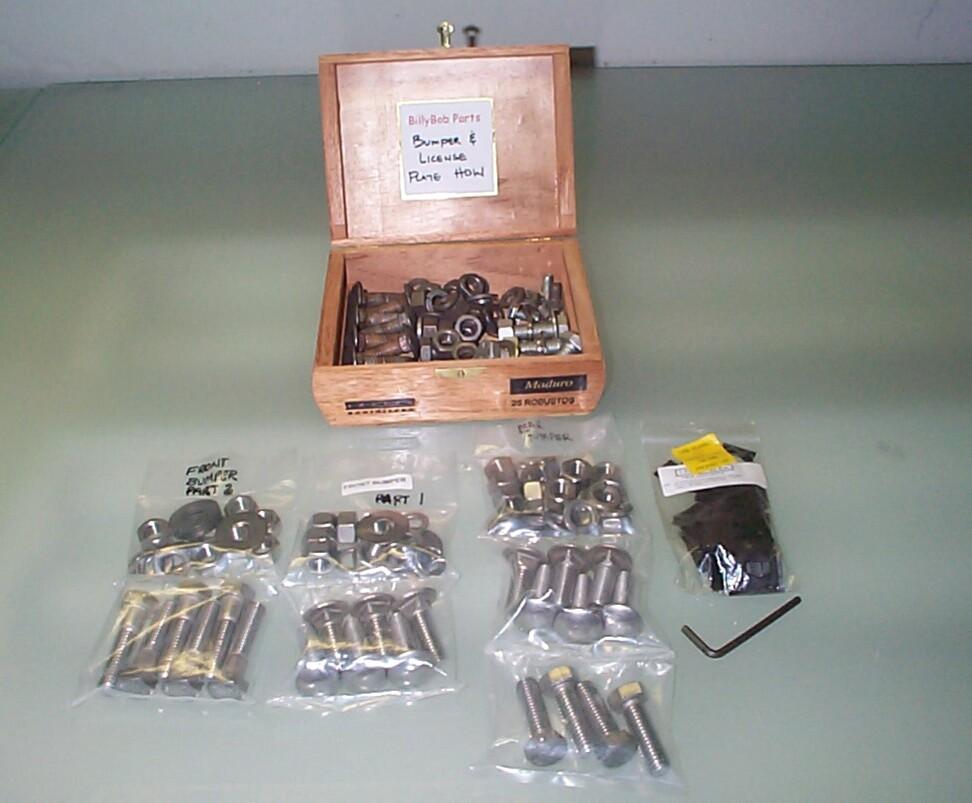

Bumper and License Plate Group
The first group of fasteners that I organized were the bumper and license plate bracket group.
I
had a second set of cleaned fasteners together and ready for derusting
and re-finishing operations when I decided to buy a 47-55 Chevy
Complete Bolt Set (less bed bolts), Stainless Steel from Doc's House of bolts.
It included the bumper and bumper bracket fasteners but not the license
plate hardware.
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Front Bumper | 109136 Bolt | Sect 14 | Sht 1.00 | 5 | ½" -13 x 1-1/2" Carriage Bolts | Stainless | Bumper and Bracket |
| Front Bumper | 5 | ½" ID 1-1/4" OD 1/16" fender washers | Stainless | Bumper and Bracket | |||
| Front Bumper | 103343 PW | Sect 14 | Sht 1.00 | 5 | ½" lock washers | Stainless | Bumper and Bracket |
| Front Bumper | 3697183 Nut | Sect 14 | Sht 1.00 | 5 | ½" -13 hex nuts | Stainless | Bumper and Bracket |
| Front Bumper | Spring Nut | Sect 14 | Sht 1.00 | 2 | ½" Spring Nuts | Black | Bumper Plug |
| Front Bumper Bracket | 109858 Bolt | Sect 14 | Sht 1.00 | 6 | ½" - 13 x 2" hex cap bolts | Stainless | Bumper Bracket and Frame |
| Front Bumper Bracket | 6 | ½" ID 1-1/4" OD 1/16" fender washers | Stainless | Bumper Bracket and Frame | |||
| Front Bumper Bracket | 103329 LW | Sect 14 | Sht 1.00 | 6 | ½" lock washers | Stainless | Bumper Bracket and Frame |
| Front Bumper Bracket | 103028 Nut | Sect 14 | Sht 1.00 | 6 | ½" - 20 hex nuts | Stainless | Bumper Bracket and Frame |
| Rear Bumper | 109136 Bolt | Sect 14 | Sht 1.01 | 4 | ½" -13 x 1-1/2" Carriage Bolts | Stainless | Bumper and Bracket |
| Rear Bumper | 4 | ½" ID 1-1/4" OD 1/16" fender washers | Stainless | Bumper and Bracket | |||
| Rear Bumper | 4 | ½" lock washers | Stainless | Bumper and Bracket | |||
| Rear Bumper | 3697183 Nut | Sect 14 | Sht 1.01 | 4 | ½" -13 hex nuts | Stainless | Bumper and Bracket |
| Rear Bumper Bracket | 106297 Bolt | Sect 14 | Sht 1.01 | 4 | ½" -13 x 1-1/2" hex cap bolt | Stainless | Bumper Bracket and Frame |
| Rear Bumper Bracket | 4 | ½" ID 1-1/4" OD 1/16" fender washers | Stainless | Bumper Bracket and Frame | |||
| Rear Bumper Bracket | 103329 LW | Sect 14 | Sht 1.01 | 4 | ½" lock washers | Stainless | Bumper Bracket and Frame |
| Rear Bumper Bracket | 103028 Nut | Sect 14 | Sht 1.01 | 4 | ½" -13 hex nuts | Stainless | Bumper Bracket and Frame |
| License Plate Bracket | 2 | 5/16"-18 x 3/4" hex cap screws | Armor-coat | Bracket and Bed Cross-member | |||
| License Plate Bracket | 2 | 5/16" lock washers | Stainless | Bracket and Bed Cross-member | |||
| License Plate Light Assembly | 2 | 1/4" flat wshers | Stainless | License Plate Light Assembly and Bracket | |||
| License Plate Light Assembly | 2 | #10 - 32 hex nuts | Stainless | License Plate Light Assembly and Bracket | |||
| License Plate Light Lens Frame | 2 | #6 - 32 x 3/8" slotted machine screws | Stainless | Lens Frame and License Plate Light Assembly |

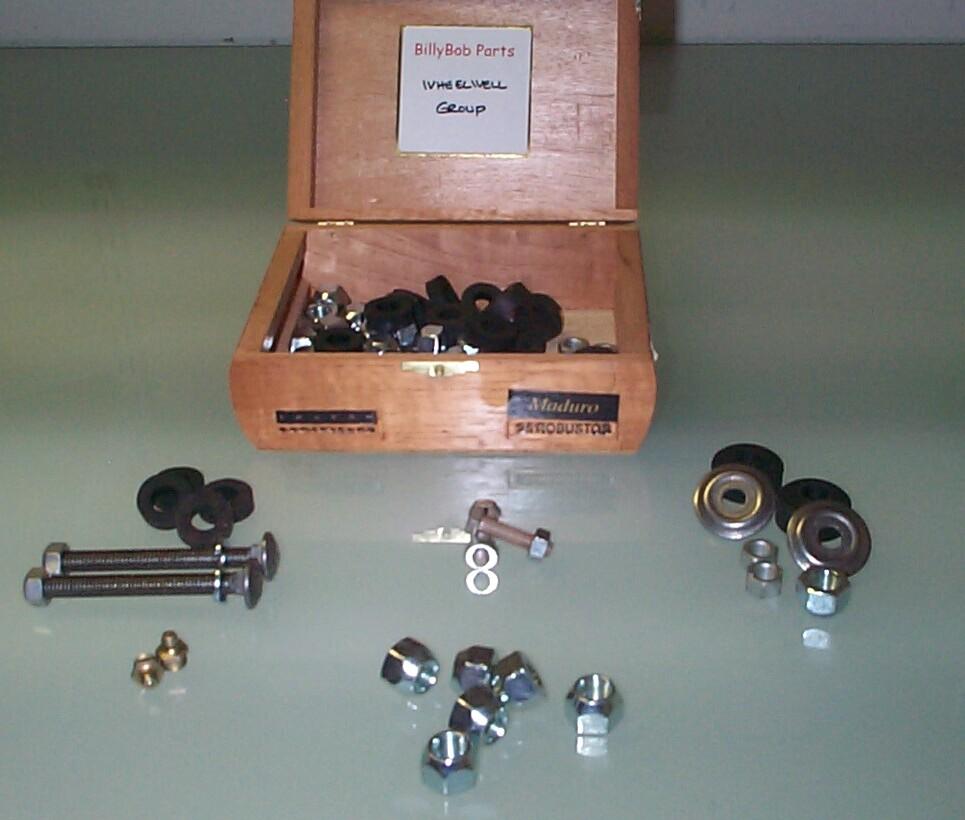

Wheelwell Group
This
grouping includes lug nuts, shock absorbers, spring shackles and rear
axle bumpers. I was able to obtain extra rubber shackle washers from
Chevy Duty. One extra set of rear shock hardware came from the extra
shock I have in inventory.
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Wheel | 358501 Wheel Nuts | Sect 10 | Sht 1.00 | 24 | 7/16" - 20 tapered seat lug nuts | Tin-zinc | Wheel and Brake Drum |
| Front Shock Absorber | 043469 nut | Sect 3 | Sht 3.00 | 4 | 3/8" - 24 hex nuts | Ultra-Coat | Shock Aborber and Bracket |
| Front Shock Absorber | 043468 Retainer | Sect 3 | Sht 3.00 | 8 | Supplied with shock | Tin-zinc | Shock Aborber and Bracket |
| Front Shock Absorber | 3708378 Grommet | Sect 3 | Sht 3.00 | 8 | Supplied with shock | Rubber | Shock Aborber and Bracket |
| Front Spring Shackle | 126715 Bolt | Sect 3 | Sht 3.00 | 2 | 3/8" - 16 x 3-1/2" carriage bolt | Tin-zinc | Front Spring Shackle |
| Front Spring Shackle | 103321 LW | Sect 3 | Sht 3.00 | 2 | 3/8" lock washers | Tin-zinc | Front Spring Shackle |
| Front Spring Shackle | 102635 Nut | Sect 3 | Sht 3.00 | 2 | 3/8" - 16 hex nut | Tin-zinc | Front Spring Shackle |
| Front Spring Shackle | 593705 Cork Washer | Sect 3 | Sht 3.00 | 8 | Supplied with shackle | Rubber | Front Spring Shackle |
| Rear Shock Absorber | 043469 nut | Sect 4 | Sht 1.00 | 2 | 3/8" - 24 hex nuts | Ultra-Coat | Shock Aborber and Bracket |
| Rear Shock Absorber | 043468 Retainer | Sect 4 | Sht 1.00 | 4 | Supplied with shock | Tin-zinc | Shock Aborber and Bracket |
| Rear Shock Absorber | 3708378 Grommet | Sect 4 | Sht 1.00 | 4 | Supplied with shock | Rubber | Shock Aborber and Bracket |
| Rear Shock Absorber | 3691530 Nut | Sect 4 | Sht 1.00 | 2 | ½" - 20 hex nuts | Tin-zinc | Shock Aborber and Bracket |
| Rear Shock Absorber | 3655197 Washer | Sect 4 | Sht 1.00 | 2 | ½" ID 1-3/8" OD 3/32" flat washers | Tin-zinc | Shock Aborber and Bracket |
| Rear Spring Shackle | 126715 Bolt | Sect 4 | Sht 1.00 | 2 | 3/8" - 16 x 3-1/2" carriage bolt | Tin-zinc | Rear Spring Shackle |
| Rear Spring Shackle | 103321 LW | Sect 4 | Sht 1.00 | 2 | 3/8" lock washers | Tin-zinc | Rear Spring Shackle |
| Rear Spring Shackle | 102635 Nut | Sect 4 | Sht 1.00 | 2 | 3/8" - 16 hex nut | Tin-zinc | Rear Spring Shackle |
| Rear Spring Shackle | 593705 Cork Washer | Sect 3 | Sht 4.00 | 8 | Supplied with shackle | Rubber | Rear Spring Shackle |
| Rear Axle Bumper | 122027 Bolt | Sect 4 | Sht 1.00 | 4 | 5/16" - 18 x 1-1/4" hex cap screws | Armor-coat | Axle Bumper and Bracket |
| Rear Axle Bumper | 3699172 Washer | Sect 4 | Sht 1.00 | 4 | 5/16" ID 13/16" OD 1/16" flat washers | Tin-zinc | Axle Bumper and Bracket |
| Rear Axle Bumper | 102634 Nut | Sect 4 | Sht 1.00 | 4 | 5/16" - 18 hex nuts | Tin-zinc | Axle Bumper and Bracket |

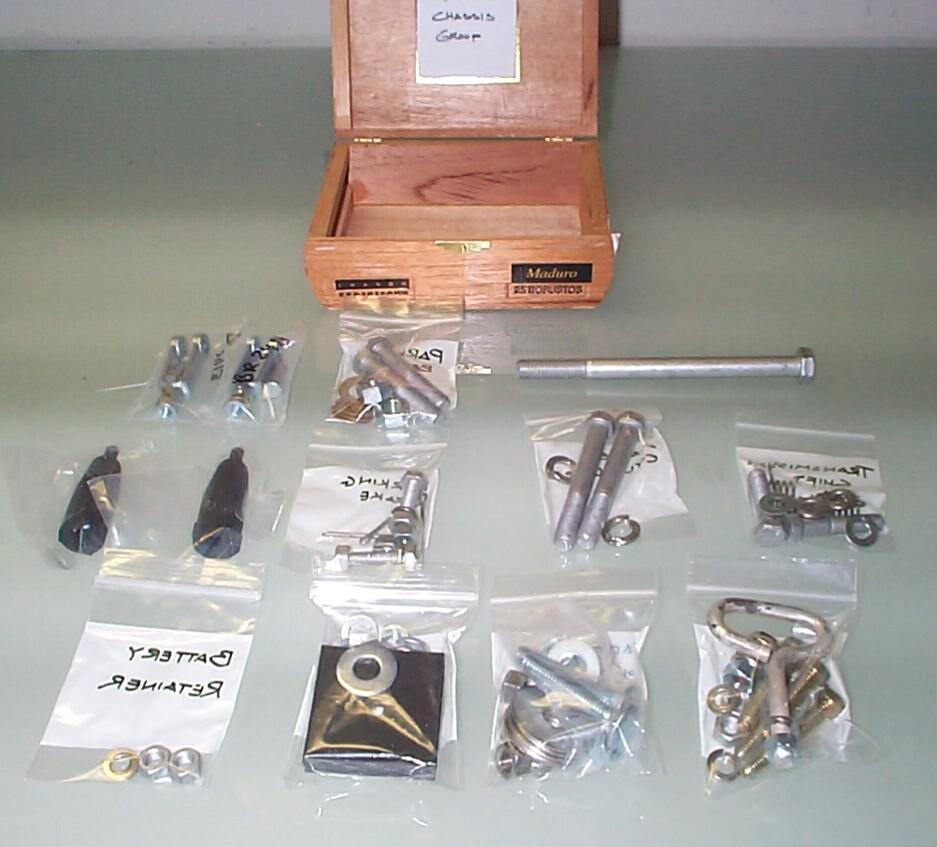

Chassis Group
This
grouping currently includes radiator support, transmission linkage,
master brake cylinder, battery retainer, exhaust system and spare tire
carrier hardware. Many of the fasteners are from McMaster-Carr while
the radiator support shims and bolts came from Chevy-Duty.
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Radiator Support | 3694196 Bolt | Sect 11 | Sht 2.11 | 2 | 3/8" - 16 x 2" carriage bolt | Radiator Support and Front Cross-member | |
| Radiator Support | 378516 Shim | Sect 11 | Sht 2.11 | 2 | 2" x 2" x 1/4" with 3/8" hole | Rubber | Radiator Support and Front Cross-member |
| Radiator Support | 3692214 SP W | Sect 11 | Sht 2.11 | 4 | 3/8" ID 1-1/2" OD 1/16" flat washers (2) | Stainless | Radiator Support and Front Cross-member |
| Radiator Support | 120382 LW | Sect 11 | Sht 2.11 | 2 | 3/8" lock washers | Stainless | Radiator Support and Front Cross-member |
| Radiator Support | 120377 Nut | Sect 11 | Sht 2.11 | 2 | 3/8" - 16 hex nut | Stainless | Radiator Support and Front Cross-member |
| Trans-mission Linkage | 2 | 3/8" - 24 x 1-3/4" hex cap screws | Armor-coat | Trans-mission and Shift Arm | |||
| Trans-mission Linkage | 2 | 3/8" lock washers | Stainless | Trans-mission and Shift Arm | |||
| Trans-mission Linkage | 2 | 3/8" - 24 hex nuts | Ultra-Coat | Trans-mission and Shift Arm | |||
| Trans-mission Linkage | 103373 CP | Sect 7 | Sht 2.00 | 2 | 3/32" x 1-1/2" cotter pins | Tin-zinc | Trans-mission Shift Arm and Shift Rod |
| Trans-mission Linkage | 103340 PW | Sect 7 | Sht 2.00 | 2 | 5/16" flat washers | Tin-zinc | Trans-mission Shift Arm and Shift Rod |
| Trans-mission Linkage | 371704 Spring | Sect 7 | Sht 2.00 | 2 | 7/16" O.D. by 7/16" long compres-sion springs | Tin-zinc | Trans-mission Shift Arm and Shift Rod |
| Master Cylinder | 3683086 Bolt | Sect 5 | Sht 2.00 | 2 | 7/16" - 20 x 3-1/2" hex cap screws | Armor-coat | Master Cylinder and Frame Bracket |
| Master Cylinder | 103322 LW | Sect 5 | Sht 2.00 | 2 | 7/16" lock washers | Master Cylinder and Frame Bracket | |
| Battery Retainer | 102634 Nut | Sect 12 | Sht 8.00 | 2 | 5/16" - 18 hex nuts | Ultra-Coat | Battery Retainer and Battery Box Rod |
| Battery Retainer | 103320 LW | Sect 12 | Sht 8.00 | 2 | 5/16" lock washers | Stainless | Battery Retainer and Battery Box Rod |
| Battery Retainer | 446200 PW | Sect 12 | Sht 8.00 | 2 | 5/16" flat washers | Battery Retainer and Battery Box Rod | |
| Exhaust Pipe | 3689549 Clamp | Sect 8 | Sht 3.00 | 1 | Hand fabri-cated Strap Type Clamp | Painted | Exhaust Pipe and Muffler |
| Exhaust Pipe | 100014 Bolt | Sect 8 | Sht 3.00 | 1 | 5/16" - 18 x 2" hex cap screw | Cad | Exhaust Pipe and Muffler |
| Exhaust Pipe | 103320 LW | Sect 8 | Sht 3.00 | 1 | 5/16" lock washer | Stainless | Exhaust Pipe and Muffler |
| Exhaust Pipe | 103025 Nut | Sect 8 | Sht 3.00 | 1 | 5/16" - 18 hex nut | Ultra-Coat | Exhaust Pipe and Muffler |
| Muffler Support | 344194 Strap | Sect 8 | Sht 3.00 | 1 | Hand fabri-cated Strap | Painted | Muffler and Frame Bracket |
| Muffler Support | 344193 Bolt | Sect 8 | Sht 3.00 | 1 | 5/16" - 24 eye bolt | Tin-zinc | Muffler and Frame Bracket |
| Muffler Support | 103320 LW | Sect 8 | Sht 3.00 | 1 | 5/16" lock washer | Stainless | Muffler and Frame Bracket |
| Muffler Support | 103025 Nut | Sect 8 | Sht 3.00 | 1 | 5/16" - 24 hex nut | Tin-zinc | Muffler and Frame Bracket |
| Tail Pipe | 3689549 Clamp | Sect 8 | Sht 3.00 | 1 | Hand fabri-cated Strap Type Clamp | Painted | Muffler and Tail Pipe |
| Tail Pipe | 100014 Bolt | Sect 8 | Sht 3.00 | 1 | 5/16" - 18 x 2" hex cap screw | Cad | Muffler and Tail Pipe |
| Tail Pipe | 103320 LW | Sect 8 | Sht 3.00 | 1 | 5/16" lock washer | Stainless | Muffler and Tail Pipe |
| Tail Pipe | 103025 Nut | Sect 8 | Sht 3.00 | 1 | 5/16" - 18 hex nut | Ultra-Coat | Muffler and Tail Pipe |
| Tail Pipe | 3696162 Support | Sect 8 | Sht 4.00 | 1 | Strap Type Tail Pipe Support | Painted | Tail Pipe and Frame |
| Tail Pipe | 100014 Bolt | Sect 8 | Sht 4.00 | 1 | 5/16" - 18 x 2" hex cap screw | Cad | Tail Pipe and Support |
| Tail Pipe | 103320 LW | Sect 8 | Sht 4.00 | 1 | 5/16" lock washer | Stainless | Tail Pipe and Support |
| Tail Pipe | 103025 Nut | Sect 8 | Sht 4.00 | 1 | 5/16" - 18 hex nut | Ultra-Coat | Tail Pipe and Support |
| Tail Pipe Support | 106285 Bolt | Sect 8 | Sht 4.00 | 1 | 3/8" - 16 x 3/4" hex cap screw | Cad | Tail Pipe Support and Frame |
| Tail Pipe Support | 103321 LW | Sect 8 | Sht 4.00 | 1 | 3/8" lock washer | Stainless | Tail Pipe Support and Frame |
| Tail Pipe Support | 103026 Nut | Sect 8 | Sht 4.00 | 1 | 3/8" - 16 hex nut | Tail Pipe Support and Frame | |
| Wheel Carrier Support | 100029 Bolt | Sect 10 | Sht 2.00 | 4 | 3/8" - 24 x 1-3/4" hex cap screws | Armor-coat | Support Channel and Frame |
| Wheel Carrier Support | 120382 LW | Sect 10 | Sht 2.00 | 4 | 3/8" lock washers | Support Channel and Frame | |
| Wheel Carrier Support | 120369 Nut | Sect 10 | Sht 2.00 | 4 | 3/8" - 24 hex nuts | Ultra-Coat | Support Channel and Frame |
| Wheel Carrier Bracket | 3697356 Bolt | Sect 10 | Sht 2.00 | 1 | ½" - 13 x 6-1/2" hex cap screw | Armor-coat | Wheel Carrier Bracket and Support Channel |
| Wheel Carrier Bracket | 3697355 SP W | Sect 10 | Sht 2.00 | 2 | ½" ID 1-1/6" OD 3/32" flat washers | Stainless | Wheel Carrier Bracket and Support Channel |
| Wheel Carrier Bracket | 126019 Nut | Sect 10 | Sht 2.00 | 2 | ½" - 13 hex nuts | Armor-coat | Wheel Carrier Bracket and Support Channel |
| Wheel Carrier | 3697353 Clevis Pin | Sect 10 | Sht 2.00 | 1 | 5/16" x 2-1/2" clevis pin | Stainless | Wheel Carrier and Wheel Carrier Bracket |
| Wheel Carrier | 103340 PW | Sect 10 | Sht 2.00 | ||||
| Wheel Carrier | 103372 CP | Sect 10 | Sht 2.00 | 1 | 3/32" x 1-1/2" cotter pin | Stainless | Wheel Carrier and Wheel Carrier Bracket |
| Wheel Carrier | 3696301 Bolt | Sect 10 | Sht 2.00 | 1 | ½" -13 x 10" J-bolt | Stainless | Wheel Carrier and Support Channel |
| Wheel Carrier | 1 | 17/32" ID 2" OD 1/8" thick fender washer | Wheel Carrier and Support Channel | ||||
| Wheel Carrier | 3697354 Nut | Sect 10 | Sht 2.00 | 1 | ½" -13 x 1-3/4" hex nut | Wheel Carrier and Support Channel |
Parking Brake Group
This grouping currently includes parking brake assembly hardware from the pedal and release to the rear drums. Many of the fasteners are from McMaster-Carr while the parking brake clevis hardware and cable boots came from American Classic Truck Parts.
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Parking Brake Cable | 4 | 5/16"-18 x 3/4" hex cap screw | Armor-coat | Parking Brake Cable and Backing Plate | |||
| Parking Brake Cable | 4 | 5/16" lock washer | Stainless | Parking Brake Cable and Backing Plate | |||
| Parking Brake Cable | 4 | 5/16"-18 x 3/4" hex nut | Armor-coat | Parking Brake Cable and Backing Plate | |||
| Parking Brake Cable Bracket | 3682940 Bolt | Sect 5 | Sht 4.00 | 2 | 5/16"-18 x 1-1/4" hex cap screw | Armor-coat | Parking Brake Bracket Cable Clamp and Cable |
| Parking Brake Cable Bracket | 103320 LW | Sect 5 | Sht 4.00 | 2 | 5/16" lock washer | Stainless | Parking Brake Bracket Cable Clamp and Cable |
| Parking Brake Cable Bracket | 103025 Nut | Sect 5 | Sht 4.00 | 2 | 5/16" - 18 hex nut | Armor-coat | Parking Brake Bracket Cable Clamp and Cable |
| Parking Brake Cable | 3691420 Cable Seal | Sect 5 | Sht 4.00 | 2 | Cable Boot | Rubber | Parking Brake Cable End |
| Parking Brake Cable | 114493 Nut | Sect 5 | Sht 4.00 | 2 | 5/16" - 24 jamb nut | Tin-zinc | Parking Brake Cable End |
| Parking Brake Cable | 3687752 Clevis | Sect 5 | Sht 4.00 | 2 | 5/16" - 24 clevis | Tin-zinc | Parking Brake Cable End |
| Parking Brake Cable | 114784 Pin | Sect 5 | Sht 4.00 | 2 | 5/16" x 1" clevis pin | Tin-zinc | Parking Brake Cable End Clevis |
| Parking Brake Cable | 103372 CP | Sect 5 | Sht 4.00 | 2 | 3/32" x 1-1/2" cotter pin | Stainless | Parking Brake Cable End Clevis |
| Parking Brake Cross Shaft Lever | 106631 Bolt | Sect 5 | Sht 4.00 | 2 | 7/16" - 20 x 2-1/2" hex cap screw | Armor-coat | Parking Brake Cross Shaft and Lever |
| Parking Brake Cross Shaft Lever | 3693853 washer | Sect 5 | Sht 4.00 | 4 | 7/16" flat washer | Zinc | Parking Brake Cross Shaft and Lever |
| Parking Brake Cross Shaft Lever | 3695966 Nut | Sect 5 | Sht 4.00 | 2 | 7/16" - 20 hex nut | Tin-zinc | Parking Brake Cross Shaft and Lever |
Bed Group
This grouping currently includes bed board assembly
hardware for side angles, cross members, and bed strips. All the
fasteners are unpolished stainless steel from
Mar-K Quality Parts.
| LOCATION | FAM NUM | FAM SECT | FAM PAGE | HOW MANY | SIZE * | FINISH * | NOTES |
| Bed Side Angle Strips | 5/16" - 18 x 1-1/2" carriage bolts | Stainless | Angle Strip and Bed Board | ||||
| Bed Side Angle Strips | 5/16" lock washer | Stainless | Angle Strip and Bed Board | ||||
| Bed Side Angle Strips | 5/16" - 18 hex nut | Stainless | Angle Strip and Bed Board | ||||
| Bed Cross Member | 6 | 3/8" - 16 x 4" carriage bolts | Stainless | Bed Cross Members and Frame | |||
| Bed Cross Member | 6 | 1-1/2" OD offset flat washer | Stainless | Bed Cross Members and Frame | |||
| Bed Cross Member | 6 | 3/8" ID 7/8" OD flat washers | Stainless | Bed Cross Members and Frame | |||
| Bed Cross Member | 6 | 3/8" lock washer | Stainless | Bed Cross Members and Frame | |||
| Bed Cross Member | 6 | 3/8" hex nut | Stainless | Bed Cross Members and Frame | |||
| Bed Board Strips | 56 | 1/4" - 20 x 1-1/4" carriage bolts | Stainless | Bed Board Strips and Cross Members | |||
| Bed Board Strips | 21 | 1/4" ID 1-1/2" OD fender washers | Stainless | Bed Board Strips and Bed Boards | |||
| Bed Board Strips | 56 | 1/4" lock washers | Stainless | Bed Board Strips and Cross Members | |||
| Bed Board Strips | 56 | 1/4" hex nuts | Stainless | Bed Board Strips and Cross Members |
You can email me at
webmaster@laroke.com
Issued Friday February 18, 2005
Updated Tuesday April 24, 2018
copyright © 1996-2018 Larry Robert Kephart all rights reserved
| | LRK Home | | Bio Info | | Krash Khronicles | | LAROKE | |
| | BettyLou | | BillyBob's Garage | | Rat Patrol | | Deerslayer | | Elvira | |
| | Land of the Free and Home of the Brave | |
| | Keppylou's Art | | WWI Soldier's Diary | |
