Installing Hubcap Clips On 8-Lug Rims

Installing Hubcap Clips On 8-Lug Rims.

Article By Smokey Culver

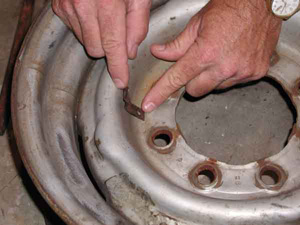

Step 1: The first thing you have to do is determine where the clips are to be mounted on the wheel. You can hold a couple in place with tape to get an idea where to mount them. Then you can lower the hubcap over them to see if it will be a snug fit once they are installed.

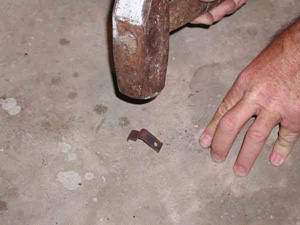

Step 2: I found that it was necessary to flatten the clips out somewhat. Laying them on a flat surface, and striking with a hammer will do this, but be careful. They can break, so it is a good idea to have a few extras just in case.

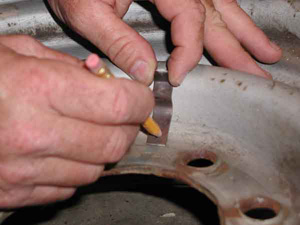

Step 3: Once you decide where you want the clips, you can mark with a pencil. I will not paint the rim until this job is done, so that I can see my marks as I go.

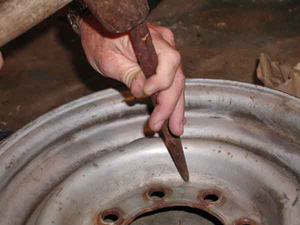

Step 4: Now you can take a punch and mark your holes to be drilled. I recommend installing 2 clips at first, one on each side, just to see how the hubcap is going to fit. I chose to install a total of 4 per wheel, which works very well.

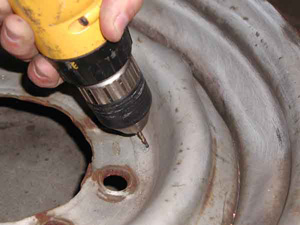

Step 5: When you drill the holes, obviously you want a hole a little smaller than the screw that you are going to use. The reason I mention this is that if you twist the screw too tight, you can break it off, which can really be a pain!

Step 6: Referring again to breaking the screws off, I highly recommend a nut driver or screwdriver, as opposed to a ratchet or drill. I guess you can tell, I broke a couple off before I finally got smart!

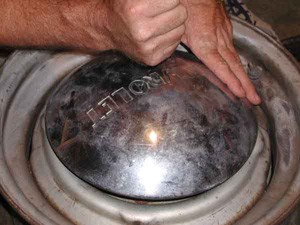

Step 7: The hubcap should fit pretty tight once the clips are installed. Be careful to see that each clip goes to the inside, and not the outside of the hubcap when you snap it on.

Step 8: Here's the good part. The clips can be adjusted, once installed, by tapping with a hammer, and/or tightening or loosening the screws as necessary, until you get a tight fit. But be careful with the hammer, because the clips, as stated earlier, can break, so it's a good idea to have a few extras on hand.

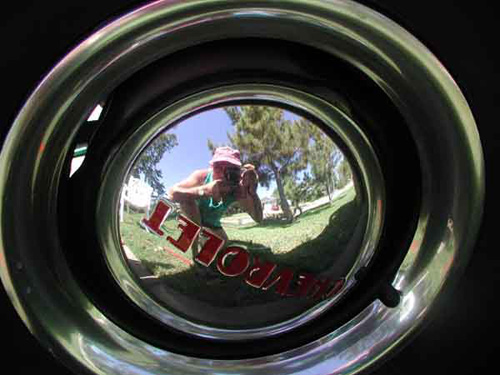

With a coat of paint and the addition of a chrome beauty ring, the hubcap looks pretty good, wouldn't you say? And I might add that if I can do it, anybody can install these clips! Good luck!!!

Special Thanks to Smokey's Old Chevy Truck for this article.
